The engine suspension of a Gilera Runner 125cc / 180cc has a special swing arm system to minimize noticeable engine vibrations. For cost reasons, the suspension of the swingarm in the frame is made with plastic bushings. These tend to bend over time, causing the engine to hang lopsided in the frame and significant engine play and vibration to be felt. Often a reason for rejection on a WOK report or the introduction of runners. But, of course, also just drives less nice.
Steun het YT kanaal
Met je aankoop
Gratis verzending
Voor alle bestellingen vanaf €99,-
Veilig betalen
Met iDeal, PayPal of Bancontact
Do not tighten the sub-frame too extremely. Otherwise, the sub-frame will lock up and the scooter will vibrate a lot.
The large silent block in the middle of the swingarm only dampens the up and down movement of the swingarm and has virtually no effect on the lateral guidance of the swingarm. Removal and installation is somewhat difficult without suitable tools. If the existing block is not obviously cracked/porous it can remain in the vehicle. Note: This block is also available in a small version (SKR, TPH) from early Piaggio models. This block is no longer available and cannot be replaced with the later block listed here.
Tightening torques for the studs:
Swing arm/motor 33-41NM
Swing arm/frame 33-41NM
Shock absorber/motor 33-41NM

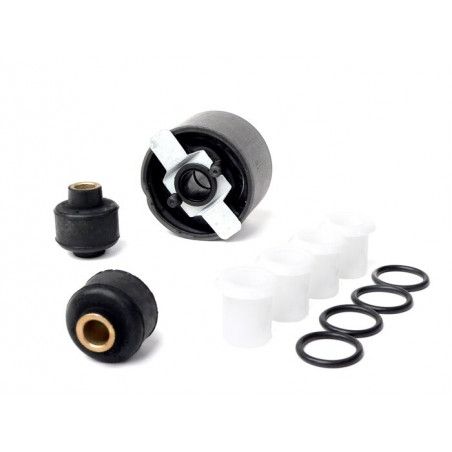

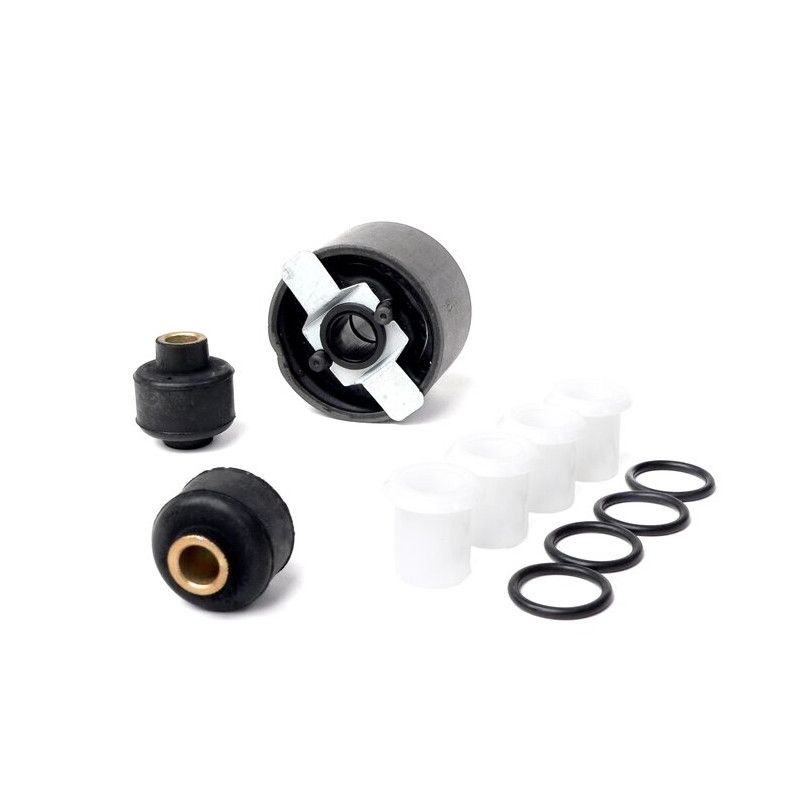

This kit includes:
4x plastic bushings
4x O.-Ring 21x3.00mm
2x Silentblock motor block
1x Silentblock large rubber
Data sheet
