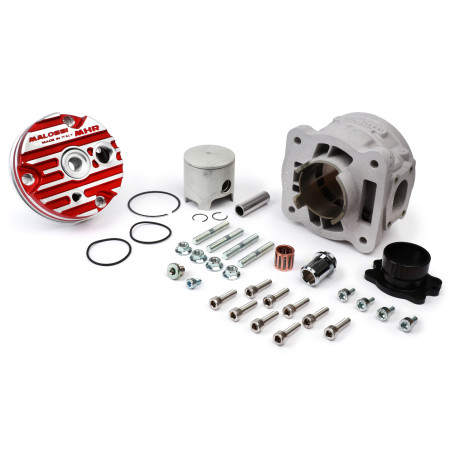

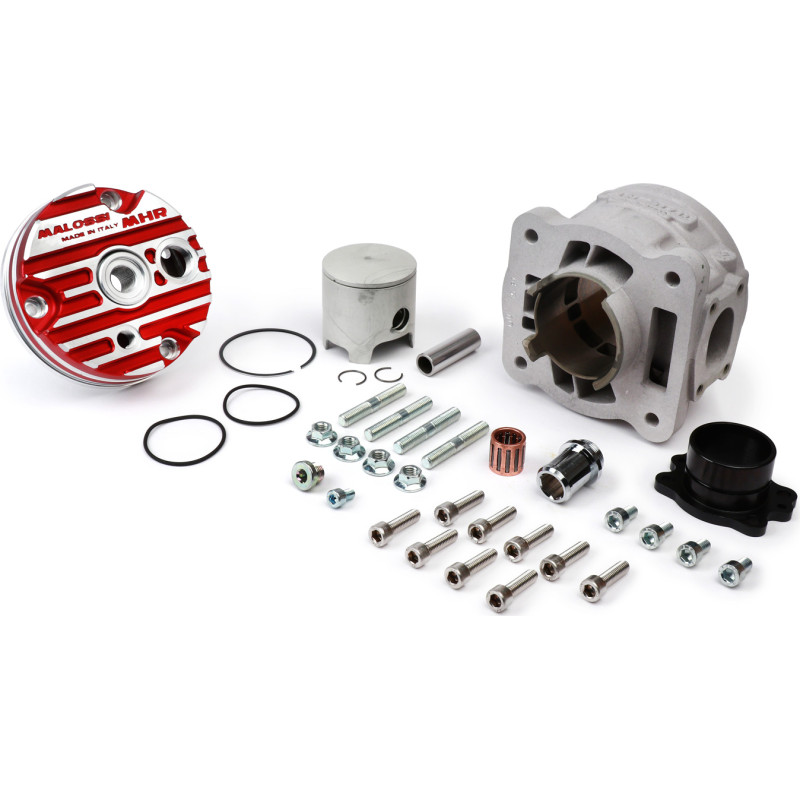

Cylinder MALOSSI 70cc Testa Rossa Flange Mount - GILERA/PIAGGIO/Minarelli LC 2-stroke

Testa Rossa Flanged Mount 70 cc

Maximum performance, flanged design, only for liquid-cooled scooters (7 ports and exhaust crossbar - 1-segment piston - modular head - requires use of C-One Malossi housing - engine shaft with connecting rod different from original).

The most advanced production of Malossi cylinders is represented by Flanged Mount cylinders, designed for Malossi C-One and RC-One engine blocks and intended only for liquid-cooled scooters.

Designed specifically for use in high-level competition, they feature the latest evolution of the iconic Malossi 7-port technology, whose strong point is certainly the support given to the main rear ports thanks to the use of the two lights opposite the exhaust. now added to the advantage of the reduction of the threaded ends, now shorter and external. By taking full advantage of all the extra space provided by the flanged design, the lights are again designed wider and can perfectly match those of the Malossi engine housings.

The shape of the exhaust also includes a structure that features an exceptionally thin crossbar with an elliptically shaped double port, to minimize stress on the piston ring, combined with an exhaust connection, which is part of the structure and follows its shape.

The inner profile of the head, again modular, has completely evolved and, thanks to its design, now guarantees more torque at all engine speeds. The head cap is made of forged aluminum, anodized red and turned in high-precision CNC machines.

The installation of a Testa Rossa Flanged Mount cylinder necessarily requires installation on a C-One or RC-One Malossi housing and the use of an engine shaft whose connecting rod length differs from the original. To fully utilize the potential of these cylinders, it is necessary to draw completely from the Malossi catalog and select all racing components manufactured by the Bolognese company.
