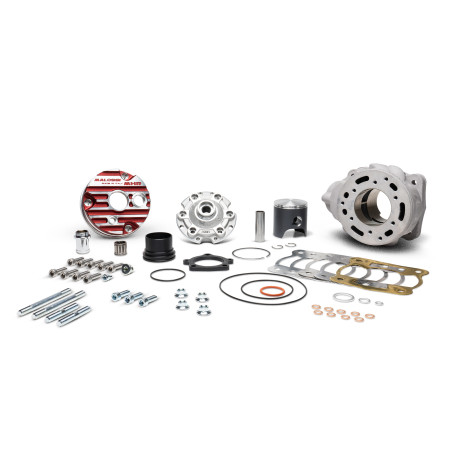

MALOSSI 100cc Testa Rossa Cylinder kit - Flange mount - ø 52

The most powerful cylinder ever produced by MALOSSI: over 32 hp at 14,000 rpm. With its large displacement and flange design, this kit is exclusive to liquid-cooled scooters. Specially designed for top racing, it features the latest evolution of Malossi's iconic 7-port technology.

€673.00
€605.70 KORTING
(tax incl.)
Quantity
3118679

Delivery time:
Ordered before 4pm, delivered tomorrow (NL only)!
Stock status:
In stock

Stock and Delivery

In stock
This product is in stock in our webshop. Orders placed before 4 PM are often delivered the next day.

Limited stock
Only a few items are left in stock in our webshop. Orders placed before 4 PM today will often be delivered the next day. Please contact our customer service for the exact stock availability.

Available to order
This product is currently out of stock but can be ordered. Order now and we will send it to you as soon as it is back in stock. Many products are often back in stock within a few days. Custom-made products may take slightly longer in some cases. The expected delivery time is for indication purposes only.

Pre-order
This product will be available soon. Order now and be one of the first to receive it. Check the expected delivery time or contact our customer service for the exact delivery time.

Temporarily out of stock
Unfortunately, this product is currently out of stock and cannot be ordered. Leave your email address and we will send you an email when it is back in stock!

  Steun het YT kanaal

Met je aankoop

  Gratis verzending

Voor alle bestellingen vanaf €99,-

  Veilig betalen

Met iDeal, PayPal of Bancontact

Description

The most powerful cylinder ever produced by MALOSSI: over 32 hp at 14,000 rpm. Designed exclusively for liquid-cooled scooters with its large displacement and flanged design, this kit is a pinnacle of racing performance.

Specially developed for top-level racing, it combines the latest evolution of MALOSSI's iconic 7-port technology. A notable feature is the innovative support of the main rear transmission ports by two additional ports opposite the exhaust. This, combined with the elimination of through bolts, makes the most of the extra space provided by the flanged design.

The cylinder has a close deck structure combined with a redesigned modular head. The head is strategically designed to enter the combustion chamber of the cylinder, protecting the nickel coating from possible detonation.

Installation of this thermal unit requires modifications to the RC-ONE engine block:

  • Bore area: To accommodate a crankshaft with increased stroke and a longer connecting rod (specifically, a 47 mm stroke and a 100 mm connecting rod).
  • Flowing: Coil ports flowing is necessary.

Volumes and flows have been carefully optimized to release the full potential of this cylinder. No compromises: a carburetor between 30 and 34 mm is essential. For optimal synergy and maximum performance on the road, the 100cc kit must be combined with our crankshaft, which has an updated 100 mm connecting rod.

With this cylinder, the engine benefits from reduced stresses on the pistons and bearings, extending its life. In addition, friction is significantly reduced, leading to increased engine efficiency, along with a noticeable reduction in noise and vibration.

The exhaust system that accompanies the 100cc kit is the result of focused engineering, designed to improve performance and perfect the flow dynamics of the new MALOSSI cylinder.

How did we achieve this? By optimizing the exhaust port angle and implementing a custom clutch.

In addition, to ensure an effective connection to the exhaust pipe, we developed an ingenious flange coupling system. This system attaches to the cylinder with three cylindrical head screws and an O-ring seal at the exhaust duct. This simple but very effective solution prevents any leakage from the thermal unit.

Technical characteristics:

  • Cooling: H2O
  • Ports: 7 transfer ports
  • Material: Aluminum
  • Bore: 52 mm
  • Stroke: 47 mm
  • Cubic capacity: 100 cc
